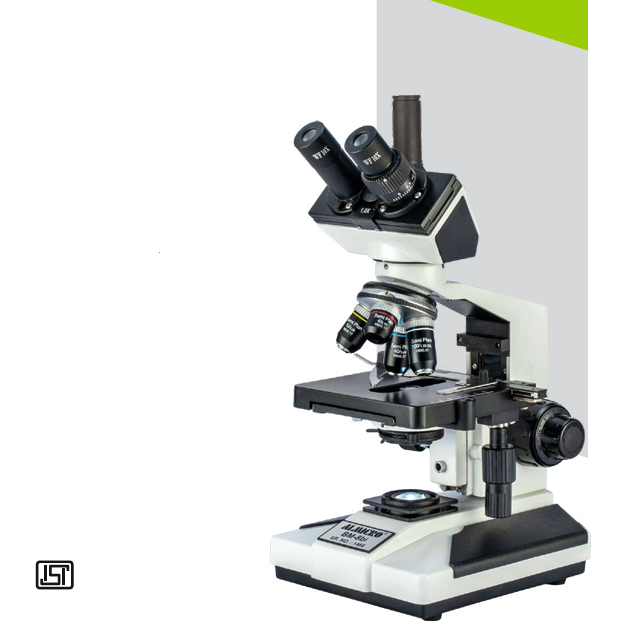

STUDENT MICROSCOPE BM‐8tr

Head꞉ Trinocular Head 30° inclined rotable at 360°
Viewing Angle꞉ 45°
Observation mode꞉ Bright Field
Dioptric adjustment꞉ Yes, on left tube ±5
Eye Piece/FOV꞉ One 10x Wide Field Eye‐piece/FOV 18MM
Nosepiece꞉ Quadruple
Objectives꞉ Parafocal Semi Plan Achromatic, 4x, 10x, 40x Sland,
100x SL Oil immersion.
Specimen Stage꞉ Horizontal Mechanical of size
120 X 125mm min.
Focussing꞉ Separate coarse and fine motion
Condenser꞉ Moveable Abbe N.A. 1.25 with iris aperture diaphragm
& filter slot
Illumination꞉ LED Light with on/off switch, light intensity
regulator and Plano concave mirror attachment suitable
for 220V, 50 Hz. AC supply
