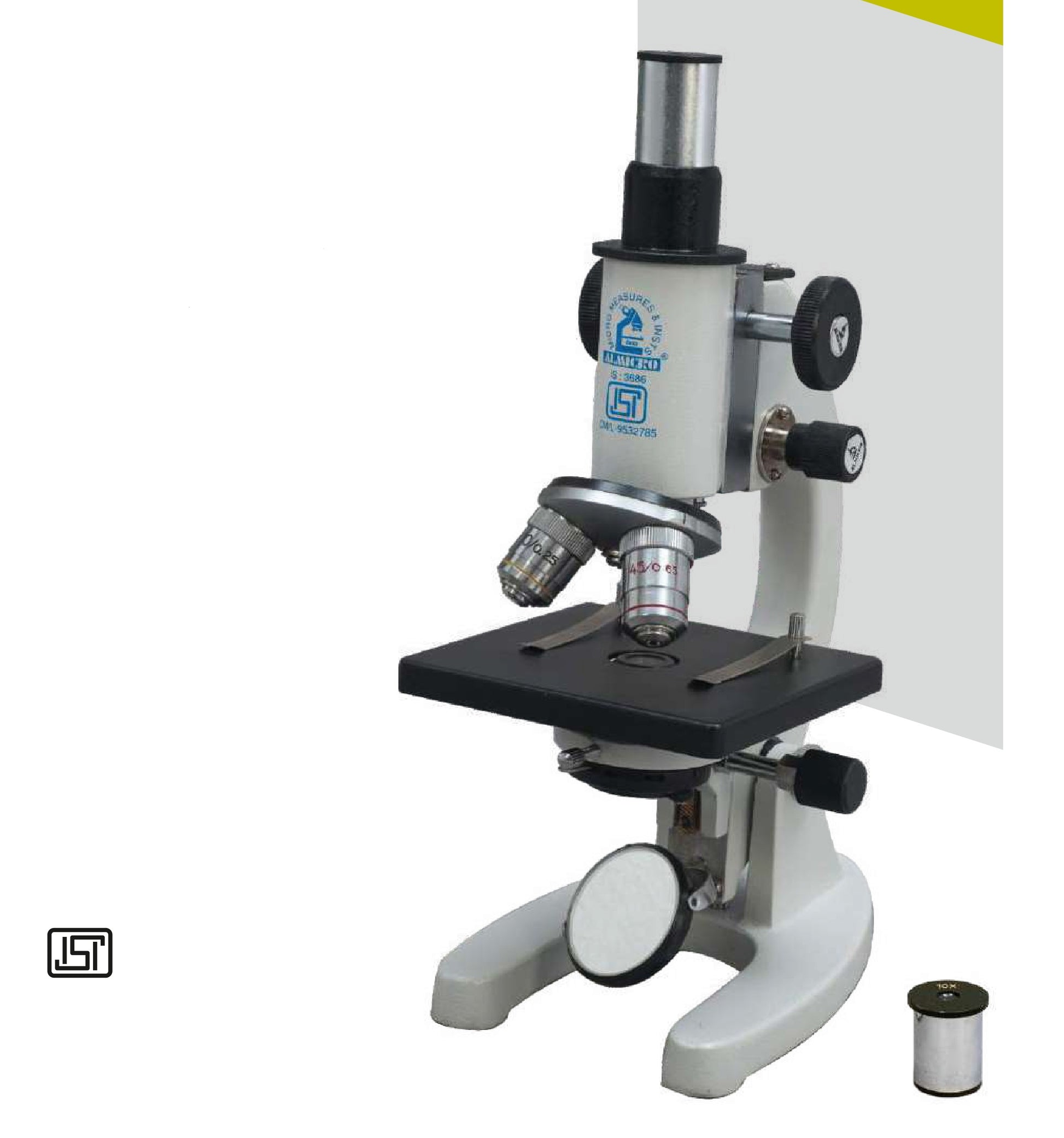

STUDENT MICROSCOPE BM‐4

Head꞉ Moncular Head 90°
Viewing Angle꞉ 90°
Observation mode꞉ Mirror
Eye Piece/FOV꞉ Wide‐Field 10X Eye‐piece or set of
10x & 15x Huygenian Eye‐pieces.
Nosepiece꞉ Triple revolving nosepiece with click stops.
Objectives꞉ Achromatic 10x and 40x
Specimen Stage꞉ High quality S.S. Stage
Focussing꞉ By vertical movement of the Observation tube,
with coarse adjustment using rack pinion movement and,
fine motion by screw lever mechanism
Condenser꞉ Abbe condenser having Numerical aperture of
1.25with iris Diaphragm and swing out filter holder. This condenser
Unit incorporates high efficiency optical system for
optimum utilization of light
Illumination꞉ Arc reflector set for using natural light to
study the slide
