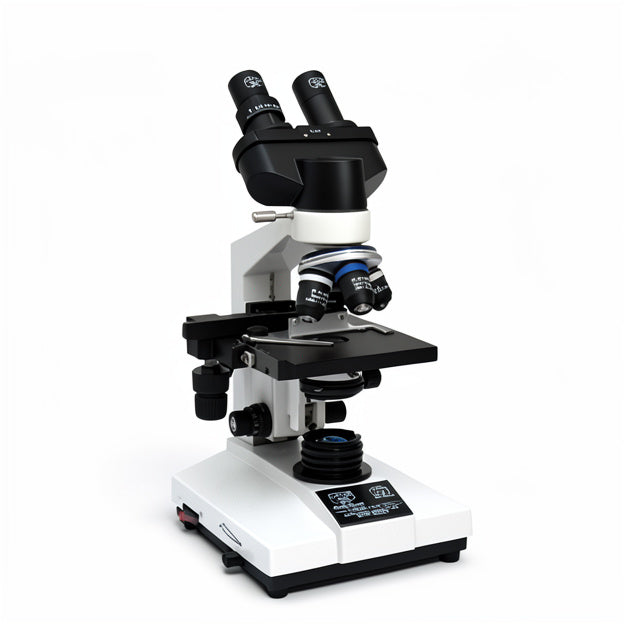

Binocular Microscope

Binocular Microscope

Rs. 12,000.00
Rs. 12,000.00
Sale Sold out
Shipping calculated at checkout.

Research Binocular Microscope ISI Specification

  • Spare Parts
  • Supplied with spare bulb, fuse, dust cover, cleaning cloth, and immersion oil as standard accessories.
  • Features
  • ISI certified; robust, stable construction; anti-fungus optics; precise mechanical stage; ergonomic viewing angle.
  • Focus System
  • Coarse and fine coaxial focusing.
  • View Head
  • Binocular, inclined and rotatable 360.
  • Theory
  • Compound optical microscope suitable for research applications with ISI certification.
  • Drawtube
  • Binocular, 360 rotatable with adjustable inter-pupillary distance.
  • Sensor
  • Not applicable (Optical only, no built-in camera sensor).
  • Resolution
  • Resolution determined by objective and eyepiece combination (up to 1200x theoretical maximum with provided optics).
  • Interface
  • Mechanical, coarse and fine focusing knobs; optical interface for eyepieces.
  • Frame Rate
  • N/A (no digital camera built-in).
  • Focal Distance
  • Adjustable via coarse and fine focus knobs.
  • Magnification
  • 40X to 1500X (Based on objective and eyepiece combo: typically 10x/15x eyepieces and 4x, 10x, 40x, 100x objectives).
  • Dimensions
  • Base: approximately 240mm x 180mm; height: 380mm (assembled).
  • Focus Range
  • Coarse: 15mm; Fine: 0.002mm per graduation.
  • Eyepieces
  • Paired 10x or 15x wide field eyepieces.
  • Eyepiece Tube
  • Binocular tube inclined at 45.
  • Illumination
  • Built-in 6V-20W halogen or LED lamp, adjustable brightness.
  • Coarse Adjustment Range
  • Approximately 15mm.
  • Fine Adjustment Range
  • 0.002mm per division for precise focusing.
  • Working Stage
  • Rectangular mechanical stage, 125mmx120mm with graduated vernier scale, double slide clips.
  • Still Image Capture Resolution
  • N/A (requires external camera adaptor for image capture).
  • Video Capture Resolution
  • N/A (requires camera integration).
  • Image Format
  • N/A (visual observation, not digital).
  • Interpupillary Distance
  • Adjustable 55mm-75mm.
  • Objective Achromatic
  • Achromatic objectives: 4x, 10x, 40x (SL), 100x (SL oil immersion).
  • Condenser
  • Substage Abbe condenser, NA 1.25, with iris diaphragm and filter holder.
  • Light Source
  • 6V-20W halogen lamp with intensity control (or LED variant, as per model).
  • Stage Movement
  • X-Y mechanical movement with low positioned co-axial controls, 75mm x 35mm movement range.
  • Mirror
  • Plano-concave mirror for alternate illumination (in some models or as accessory).
  • Color
  • White and black (standard laboratory finish).
  • Body Material
  • Heavy-duty die-cast metal body with chemical-resistant enamel finish.
  • Nosepiece
  • Quadruple revolving nosepiece, ball bearing mounted for smooth operation.
  • Usage
  • Ideal for advanced biological, pathological, and research laboratory work.
  • Packing
  • Supplied in thermocol or sturdy PVC case for safe transportation.
  • Focus Lock
  • Yes, with safety stopper to protect objectives and slides.
