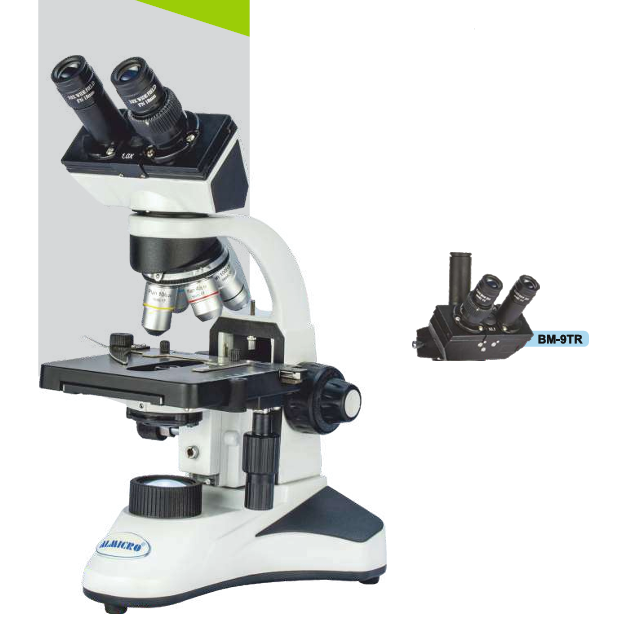

LABORATORY MICROSCOPE BM‐9bi

Head꞉ Binocular Head 30° inclined rotable at 360°
Viewing Angle꞉ 30°
Observation mode꞉ Bright Field
Dioptric adjustment꞉ Yes, on left tube ±5
Eye Piece/FOV꞉ EWF 10x (18mm Paired), Extra Wide Field EyePiece
{Hard Coated) along with high quality condenser lens for better
results for all magnifications.
Nosepiece꞉ Quadruple
Objectives꞉ Semi‐Plan Achromatic objectives, 4x, 10x, 40x and
100x  Oil immersion.
Specimen Stage꞉ Double layered mechanical stage with low
positioned coaxial knobs.
Focussing꞉ Co‐axial Focussing system
Condenser꞉ Moveable Abbe N.A. 1.25 with iris aperture diaphragm
& filter slot
Illumination꞉ Bright LED Light 3V/12w with Solid state
power supply circuitry
