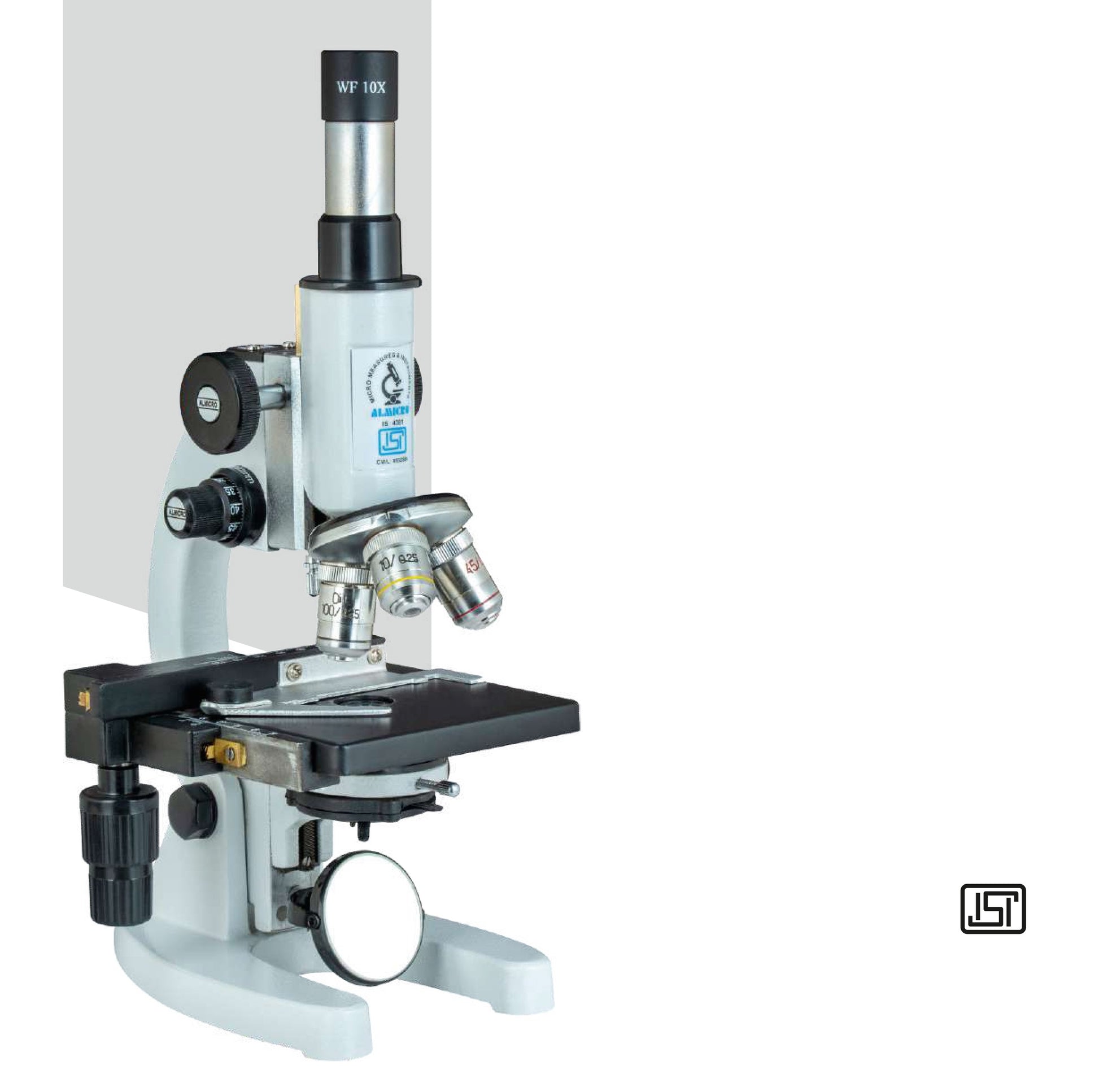

LABORATORY MICROSCOPE BM‐5

ISI Marked Medical Microscope
has a well designed heavy and
sturdy die casted monocular
body inclinable to 90° to meet
the needs of school and
college students
Head꞉ Moncular Head 90°
Viewing Angle꞉ 90°
Observation mode꞉ MIRROR/LED
Eye Piece/FOV꞉ Wide‐Field 10X Eye‐piece or set of
10x & 15x Huygenian Eye‐pieces.
Nosepiece꞉ Triple revolving nosepiece with click stops.
Objectives꞉ Achromatic 10x, 40/45x & 100x (Oil Immersion)
Specimen Stage꞉ "Fixed Co‐axial horizontal graduated mechanical
stage 120mm x 120mm with convenient adjustment for slide movement.
Focussing꞉ Separate coarse and fine motion
Condenser꞉ Double lens Bright Field abbe condenser NA 1.25 is fixed
below the stage with iris diaphragm and swing out filter holder ,
can be moved through rack‐pinion.
Illumination꞉ By plano concave mirror
