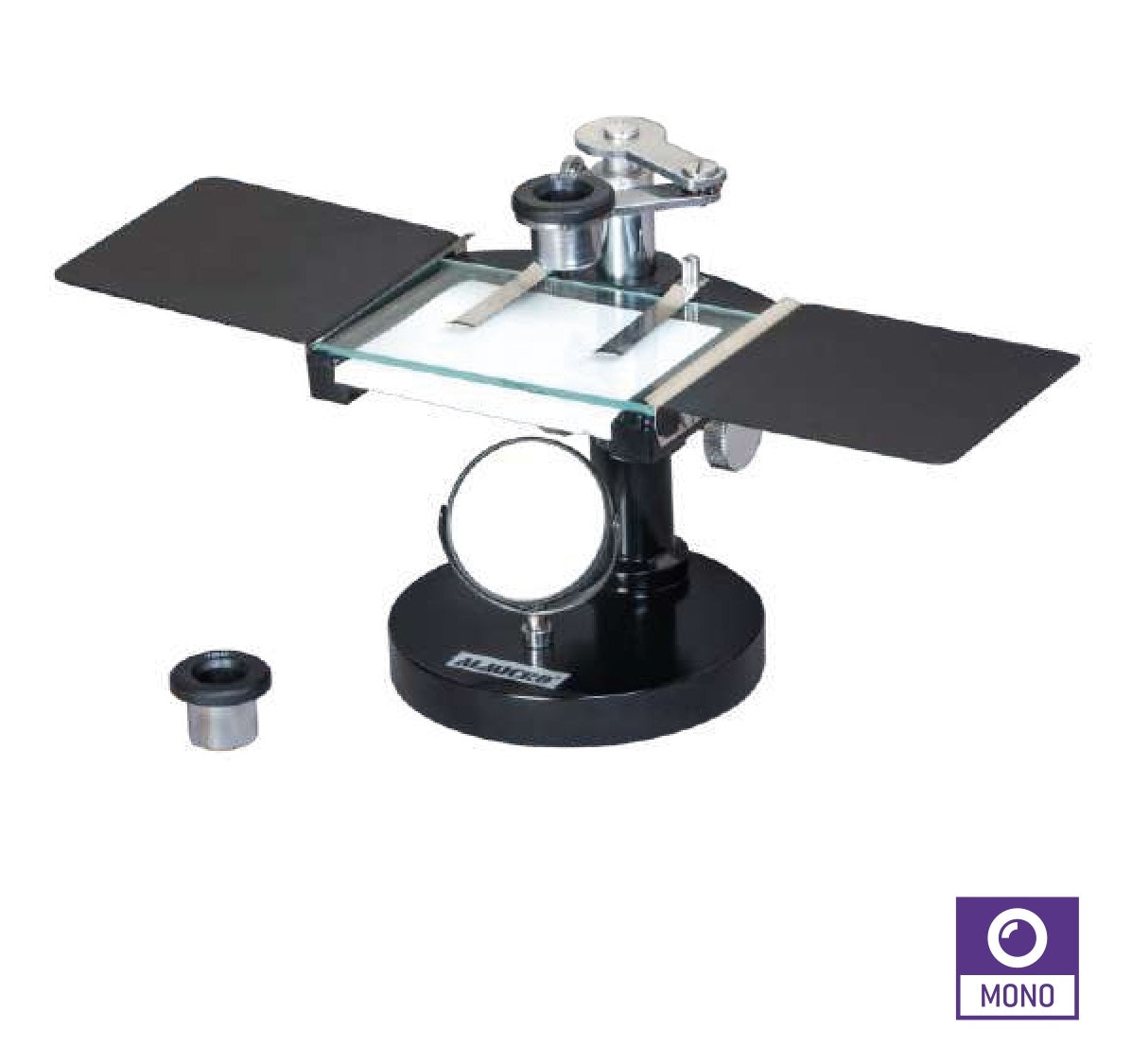

DISSECTING MICROSCOPE MD‐1

MD‐1 Dissecting Microscope is used for demonstration,
close study of small organisms and fine dissection work.
The high‐eye point lenses 10x & 20x have alternative
use of a jointed arm allowing the whole stage area to
be scanned .
The stage (85mm x 75mm) is provided with spring
stage clips, has a glass plate with arrangement for
inserting white/black metal plate for respective
background substage piano‐concave mirror reflects
sufficient daylight and artificial light on the object.
The Rack & Pinion mechanism is enclosed within the
stage support pillar, and is operated by knob on either
side. Detachable hand rests on both sides of the stage
providing for a steady support during dissection.
